Thông số kỹ thuật
| Power-handling nominal (RMS) | 500 W |
| Power-handling, program | 1000 W |
| Frequency response +/-3 dB | 79 Hz – 18 kHz |
| Frequency response -10 dB | 60 Hz – 19 kHz |
| Sensitivity 1 W @ 1 m | 103 dB half space |
| Max. SPL @ 10% THD | 129 dB half space (79 Hz – 12 kHz average) |
| Max. SPL Peak @ 10% THD | 135 dB half space |
| Electrical impedance | 8 ohms |
| Protective circuits | PTC circuit |
| Low-/mid speaker | 1x 12", 2.5" voice coil |
| HF Driver | 1", 1.75" voice coil |
| Directivity | 60°–90° (asymmetrical) x 55° CD-Horn, rotatable |
| Crossover frequency | 1.7 kHz, 12 dB/Oct. |

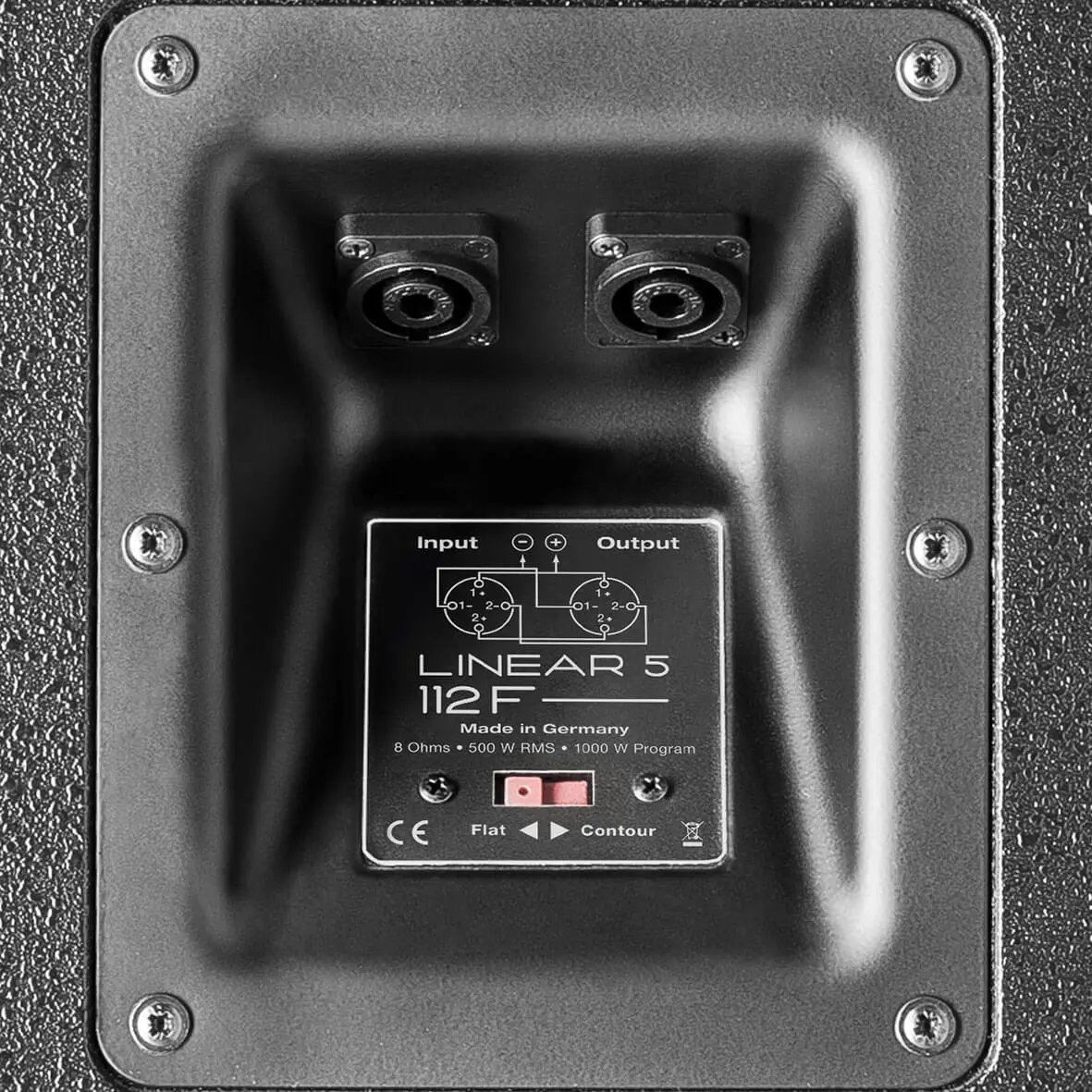

| Connections | 2x Speakon NL4 |
| Pole mount | DuoTilt 3°/7° |
| Rigging points | 3x M8 (AP-8) |
| Carrying handles | 2x MultiGrip |
| Housing | Hybrid (birch multiplex/MDF) |
| Finish | Black acrylic enamel |
| Front grille | 2 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 37 x 66.8 x 36.5 cm 14-9/16 x 26-19/64 x 14-3/8" |
| Weight | 23.9 kg / 52.7 lbs |
